ProWarm Insulation Board - XP-Pro

ProWarm Insulation Board - XP-Pro are specially designed to provide excellent insulation and support for our electric underfloor heating systems on concrete or screeded floors. With dimensions of 1200mm x 600mm per board, each board covers an area of 0.72m², ensuring efficient coverage for your installation.

Key Features:

• High-Quality Insulation: XP-PRO Insulation Boards offer superior thermal insulation properties, making them an ideal choice for improving the energy efficiency of your underfloor heating system.

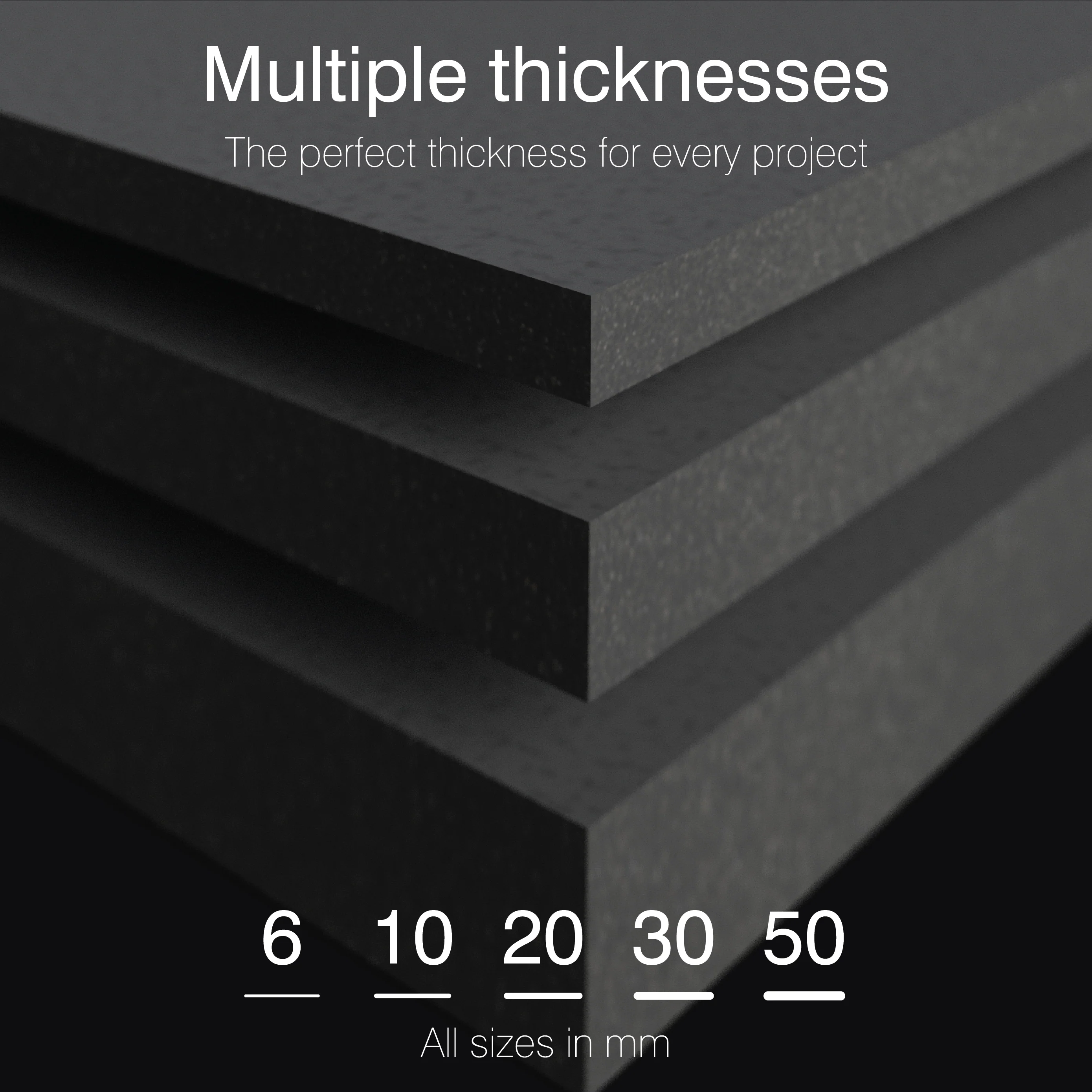

• Multiple Thickness Options: Available in 6mm, 10mm, 20mm, 30mm, and 50mm thicknesses, these boards provide flexibility to meet various installation requirements and insulation needs.
• Compatibility with Underwood Heating Systems: XP-Pro boards can be used as top-quality insulation for underwood heating systems. Simply lay the boards in a staggered brick bond pattern and place the heating mat over the top for a seamless installation.
• High Compressive Strength: With a compressive strength of 30 tonnes/m², these boards offer excellent stability and durability, ensuring long-lasting performance.
• Lightweight and Cost-Effective: The lightweight nature of XP-PRO boards simplifies handling and installation while keeping the overall project cost low.
• Approved by UltraTile: These insulation boards are fully approved by UltraTile, a trusted name in the industry, guaranteeing their reliability and quality.

Installation

The installation method for ProWarm XP-PRO boards depends on the type of heating system being installed:

• Foil Underfloor Heating: Lay the boards in a staggered brick bond pattern, and then place the foil heating mat directly over the boards for optimal performance.
• Underfloor Heating Mats: When using XP-PRO boards with underfloor heating mat systems, the boards must be securely fixed to the subfloor using a suitable flexible tile adhesive. This ensures stability and proper heat distribution for your underfloor heating system.

Experience the benefits of superior insulation and efficient underfloor heating with ProWarm XP-Pro Insulation Boards. With their high-performance features and easy installation process, these boards are the perfect choice for achieving a comfortable and energy-efficient living space.

Specifications

• Coverage per board: 0.72m²
• Dimensions: 1200mm x 600mm
• Available thicknesses: 6mm, 10mm, 20mm, 30mm, 50mm
• Compressive strength: 30 tonnes/m²
• Installation method: Lay in staggered brick bond pattern (foil underfloor heating heating system), Fix to subfloor with flexible tile adhesive (underfloor heating mat system)
